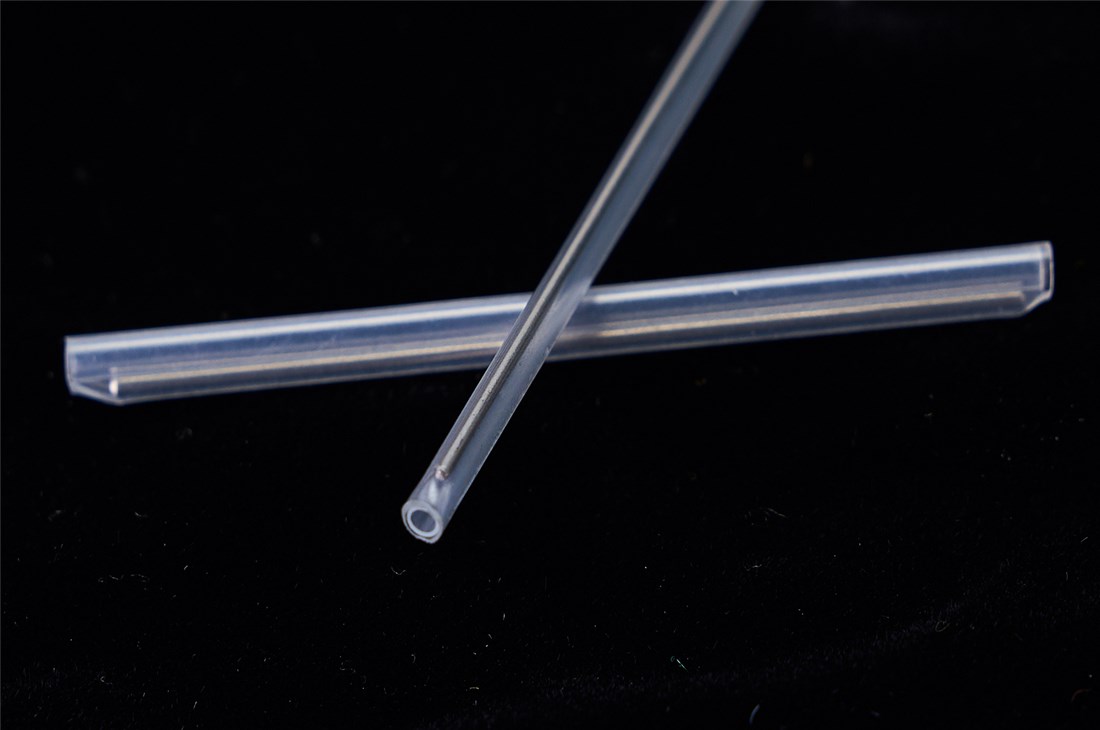

Fiber Optic Splice Protection Sleeves is Consist of cross linked polyolefin, Hot fusion tubing and Stainless Reinforcing Steel
Rod which keep optic transmission properties of optical fiber and enhance the protection to optical fiber splices. Easily
operating to the optical fiber during installation without damaging and clear sleeve make it easy to detect splice before
shrinkage. Sealing structure make the splice free from influence of temperature and humidity in special environment.
>Working Temperature : -45 ~ 110 ℃
>Shrinking temperature range: 120 ℃
>Standard color: Clear

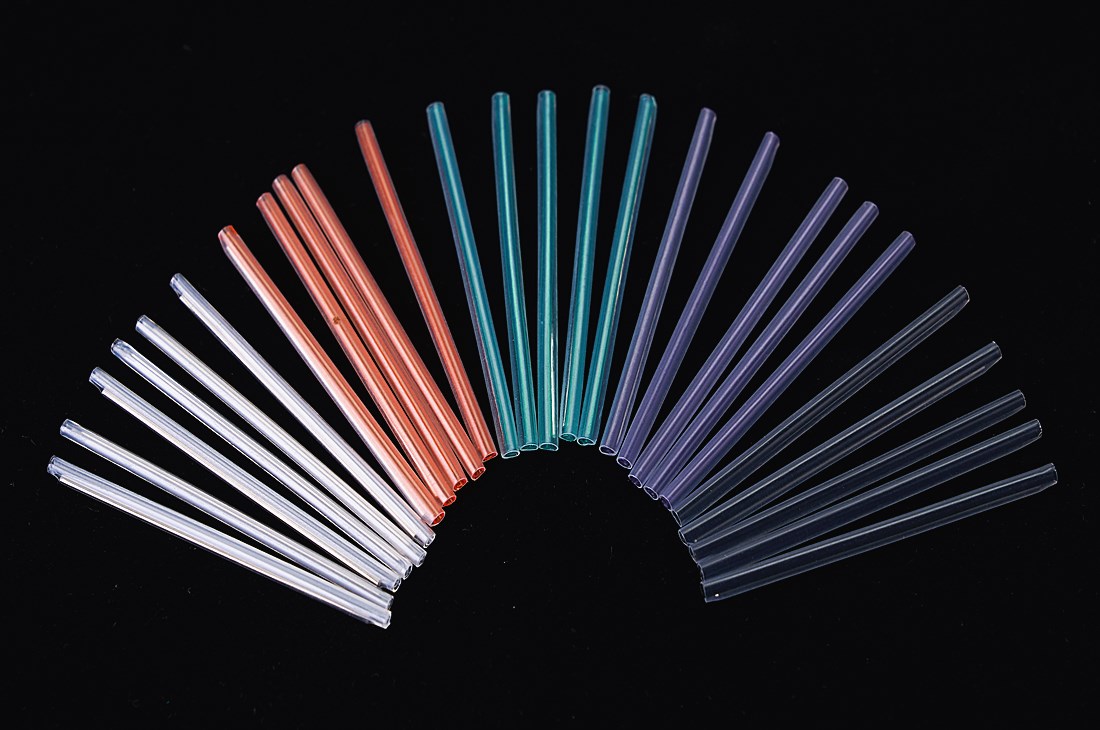

>Other 12 colors available: White, Blue, Grey, Yellow, Brown, Black, Orange, Pink, Red, Cyan, Green, Purple
| Properties | Test Method | Typical Data |
| Tensile Strength（MPa） | ASTM D 2671 | ≥18 Mpa |
| Ultimate Elongation (%) | ASTM D 2671 | 700% |
| Density (g/cm2) | ISO R1183D | 0.94 g/cm2 |
| Dielectric Strength (KV/mm) | IEC 243 | 20KV/mm |
| Dielectric Constant | IEC 243 | 2.5max |
| Longitudinal Change (%) | ASTM D 2671 | ±5% |

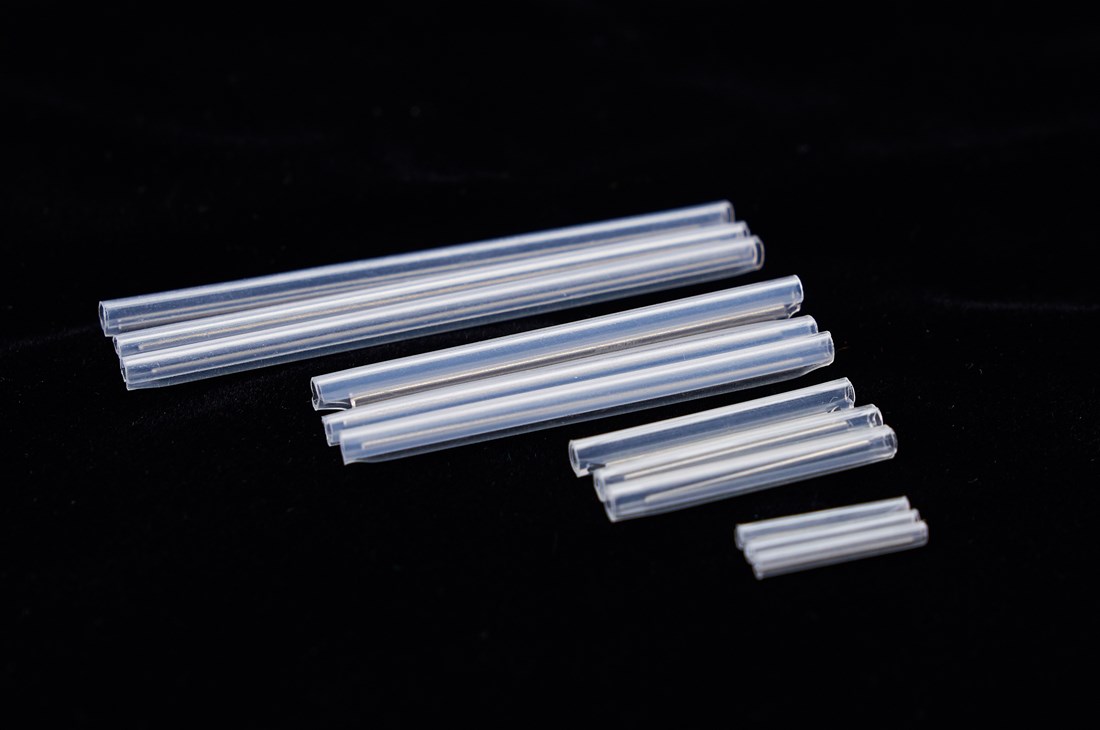

Single Fiber(mm)
| Model | Splice Protection Sleeves (After Shrinking) | Fusion Tubing | Steel Rod | |||
| Outer Diameter (±0.2) | Length (±1) | Inner Diameter(±0.1) | Length(±1) | Outer Diameter(±0.1) | Length(±1) | |
| HSFP-H-61×1.5×3.0 | 3.0 | 61 | 1.5 | 61 | 1.5 | 55 |
| HSFP-H-45×1.5×3.0 | 3.0 | 45 | 1.5 | 45 | 1.5 | 40 |
| HSFP-H-40×1.5×3.0 | 3.0 | 40 | 1.5 | 40 | 1.5 | 35 |
| HSFP-H-25×1.5×3.0 | 3.0 | 25 | 1.5 | 25 | 1.5 | 20 |
| HSFP-H-61×1.2×2.6 | 2.6 | 61 | 1.5 | 61 | 1.2 | 55 |
| HSFP-H-45×1.2×2.6 | 2.6 | 45 | 1.5 | 45 | 1.2 | 40 |
| HSFP-H-40×1.2×2.6 | 2.6 | 40 | 1.5 | 40 | 1.2 | 35 |
| HSFP-H-25×1.2×2.6 | 2.6 | 25 | 1.5 | 25 | 1.2 | 20 |
| HSFP-H-61×1.0x2.4 | 2.4 | 61 | 1.5 | 61 | 1.0 | 55 |
| HSFP-H-45×1.0x2.4 | 2.4 | 45 | 1.5 | 45 | 1.0 | 40 |
| HSFP-H-40×1.0x2.4 | 2.4 | 40 | 1.5 | 40 | 1.0 | 35 |
| HSFP-H-25×1.0x2.4 | 2.4 | 25 | 1.5 | 25 | 1.0 | 20 |
| HSFP-H-40×0.8×2.2 | 2.2 | 40 | 1.5 | 40 | 0.8 | 40 |
| HSFP-H-25×0.8×2.2 | 2.2 | 25 | 1.5 | 25 | 0.8 | 25 |
| HSFP-H-18×0.8×2.2 | 2.2 | 18 | 1.5 | 18 | 0.8 | 18 |
| HSFP-H-40×0.5×1.3 | 1.3 | 40 | 0.35 | 40 | 0.5 | 40 |
| HSFP-H-25×0.5×1.3 | 1.3 | 25 | 0.35 | 25 | 0.5 | 25 |
| HSFP-H-18×0.5×1.3 | 1.3 | 18 | 0.35 | 18 | 0.5 | 18 |
| HSFP-E-61×1.5×3.0 | 3.0 | 61 | 1.5 | 61 | 1.5 | 55 |
| HSFP-E-45×1.5×3.0 | 3.0 | 45 | 1.5 | 45 | 1.5 | 40 |
| HSFP-E-40×1.5×3.0 | 3.0 | 40 | 1.5 | 40 | 1.5 | 35 |
| HSFP-E-25×1.5×3.0 | 3.0 | 25 | 1.5 | 25 | 1.5 | 20 |
| HSFP-E-61×1.2×2.6 | 2.6 | 61 | 1.5 | 61 | 1.2 | 55 |
| HSFP-E-45×1.2×2.6 | 2.6 | 45 | 1.5 | 45 | 1.2 | 40 |
| HSFP-E-40×1.2×2.6 | 2.6 | 40 | 1.5 | 40 | 1.2 | 35 |
| HSFP-E-25×1.2×2.6 | 2.6 | 25 | 1.5 | 25 | 1.2 | 20 |
| HSFP-E-61×1.0x2.4 | 2.4 | 61 | 1.5 | 61 | 1.0 | 55 |
| HSFP-E-45×1.0x2.4 | 2.4 | 45 | 1.5 | 45 | 1.0 | 40 |
| HSFP-E-40×1.0x2.4 | 2.4 | 40 | 1.5 | 40 | 1.0 | 35 |
| HSFP-E-25×1.0x2.4 | 2.4 | 25 | 1.5 | 23 | 1.0 | 20 |
| HSFP-E-40×0.8×2.2 | 2.2 | 40 | 1.5 | 40 | 0.8 | 40 |
| HSFP-E-25×0.8×2.2 | 2.2 | 25 | 1.5 | 25 | 0.8 | 25 |
| HSFP-E-18×0.8×2.2 | 2.2 | 18 | 1.5 | 18 | 0.8 | 18 |
Notes: HSFP-H: High quality level(same as Tyco SMOUV)
HSFP-E: Economical Quality Level
Ribbon Fiber (mm)
| Model | Splice Protection Sleeves (After Shrinkitng) | Fusion Tubing | Quartz or Ceramic Rod | |||
| OuterDiameter (±0.2) | Length(±0.8) | Width(±0.1) | Height(±0.1) | Width(±0.1) | Height(±0.1) | |
| HSFP-C-4core | 3.4 | 42 | 1.3 | 2.2 | 3.0 | 1.5 |
| HSFP-2C-4core | 4.0 | 42 | 1.3 | 2.2 | 3.0 | 1.5 |
| HSFP-C-6core | 3.8 | 42 | 1.8 | 2.8 | 3.0 | 1.5 |
| HSFP-2C-6core | 4.5 | 42 | 1.8 | 2.8 | 3.0 | 1.5 |
| HSFP-C-8core | 4.8 | 42 | 2.4 | 3.4 | 4.0 | 2.0 |
| HSFP-2C-8core | 5.5 | 42 | 2.4 | 3.4 | 4.0 | 2.0 |
| HSFP-C-12core | 4.9 | 42 | 2.4 | 3.5 | 4.0 | 2.0 |
| HSFP-2C-12core | 5.8 | 42 | 2.4 | 3.5 | 4.0 | 2.0 |
| HSFP-Q-4core | 3.8 | 42 | 1.3 | 2.2 | 3.0 | 1.5 |
| HSFP-2Q-4core | 4.6 | 42 | 1.3 | 2.2 | 3.0 | 1.5 |
| HSFP-Q-6core | 3.8 | 42 | 1.8 | 2.8 | 3.0 | 1.5 |
| HSFP-2Q-6core | 4.5 | 42 | 1.8 | 2.8 | 3.0 | 1.5 |
| HSFP-Q-8core | 4.8 | 42 | 2.4 | 3.4 | 4.0 | 2.0 |
| HSFP-2Q-8core | 5.5 | 42 | 2.4 | 3.4 | 4.0 | 2.0 |
| HSFP-Q-12core | 4.9 | 42 | 2.4 | 3.5 | 4.0 | 2.0 |
| HSFP-2Q-12core | 5.8 | 42 | 2.4 | 3.5 | 4.0 | 2.0 |
Notes: HSFP-C: with Ceramic rod
HSFP-2C: with 2pcs Ceramic rod
HSFP-Q: with Quartz rod
HSFP-2Q: with 2pcs Quartz rod
