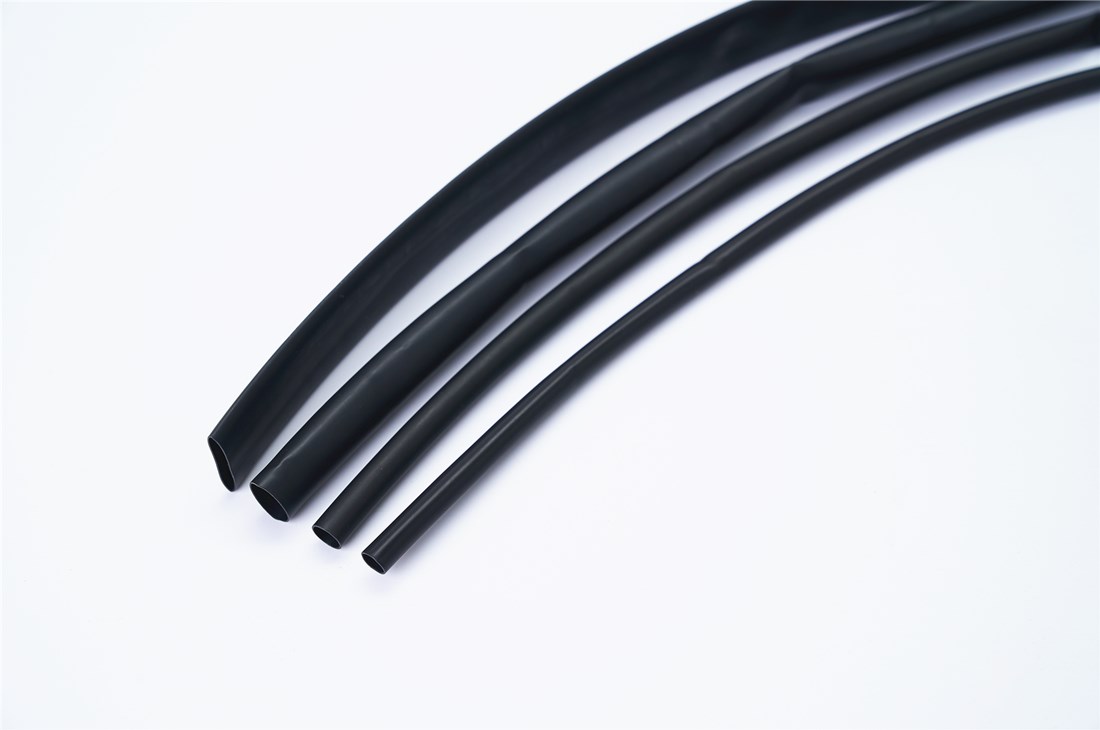

    200℃ Heat Shrink Viton Tubing

    Moodel: HHST-200

    200℃ Heat Shrink Viton Tubing is suitable to many applications requiring high resistance to corrosive fluids, fuels, lubricants, acids and solvents at elevated temperature.

    Back to list >>

    200℃ Heat Shrink Viton Tubing is made from modified fluoroelastomer (Viton), with superior  impact, abrasion and cut

    through resistant, it is suitable to many applications requiring high resistance to corrosive fluids, fuels, lubricants, acids and

    solvents at elevated temperature.


    Features


    >Approval: UL, VW-1,

    >Meet: SAE-AMS-DTL-23053/13

    >Very flexible

    >Excellent resistance of chemicals

    >Operating temperature -55℃ to +200℃

    >Minimum fully recovery temperature: 175℃

    >Standard color: Black


    PropertyTest MethodTypical Data
    Operating temperatureIEC 216-55℃ to +200℃
    Tensile strengthASTM D 26718.5MPa
    Elongation at breakASTM D 2671250%
    Elongation at break after aging250℃/168hrs.200%
    Heat shock300℃/4hrs.No cracking or dropping
    FlexibilityASTM D 41213.8MPa
    FlammabilityASTM D 2671Self-extinguish in 15sec.
    Volume resistanceASTM D 876109Ω.cm
    Dielectric strengthASTM D 26717.9kV/mm
    Copper corrosionSAE-AMS-DTL-23053/13 (175℃/16hrs.)No corrosion

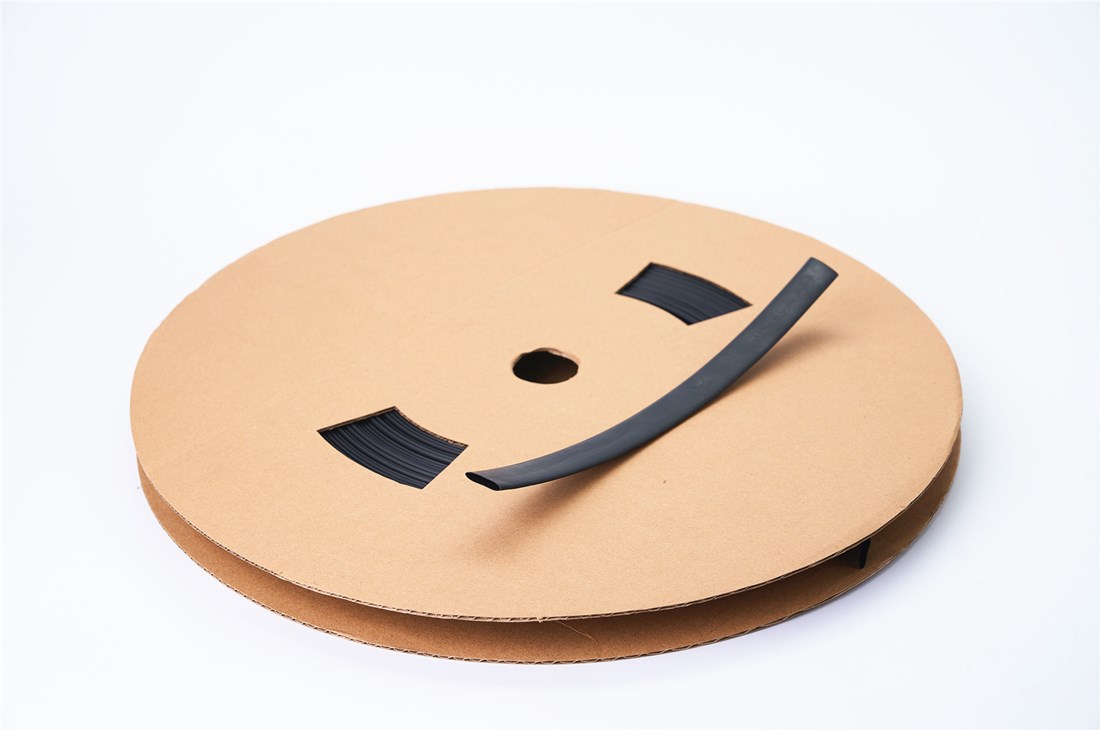

    Normal sizeAs supplied(mm)After recovered (mm)Tube shapeStandard length(m/spool)
    (inch)(mm)Inside diameter (Min.)Inside diameter (Max.)Wall thickness (Nom.)

    1/8

    3.2

    3.2

    1.6

    0.76±0.20

    O

    50

    3/16

    4.8

    4.8

    2.4

    0.89±0.20

    O

    50

    1/4

    6.4

    6.4

    3.2

    0.89±0.20

    O

    50

    3/8

    9.5

    9.5

    4.8

    0.89±0.20

    50

    1/2

    12.7

    12.7

    6.4

    0.89±0.20

    30

    3/4

    19.1

    19.1

    9.5

    1.07±0.30

    30

    1

    25.4

    25.4

    12.7

    1.25±0.30

    30

    1-1/2

    38.1

    38.1

    19.1

    1.40±0.30

    15

    2

    50.8

    50.8

    25.4

    1.65±0.30

    10

    Remarks:


    1. (Viton®) is a registered trademark of E.L Du Pont de Nemours and Co.Inc

    2. Tube shape:  “O” : Round or Oval,  “—”: Flat
