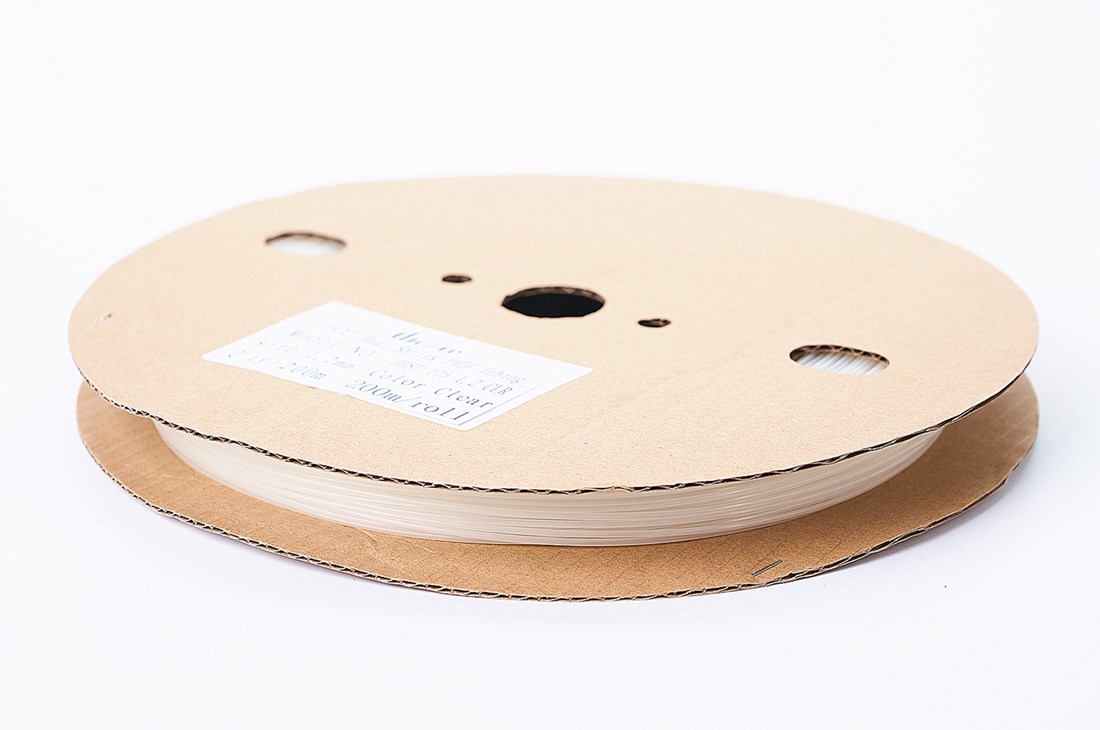

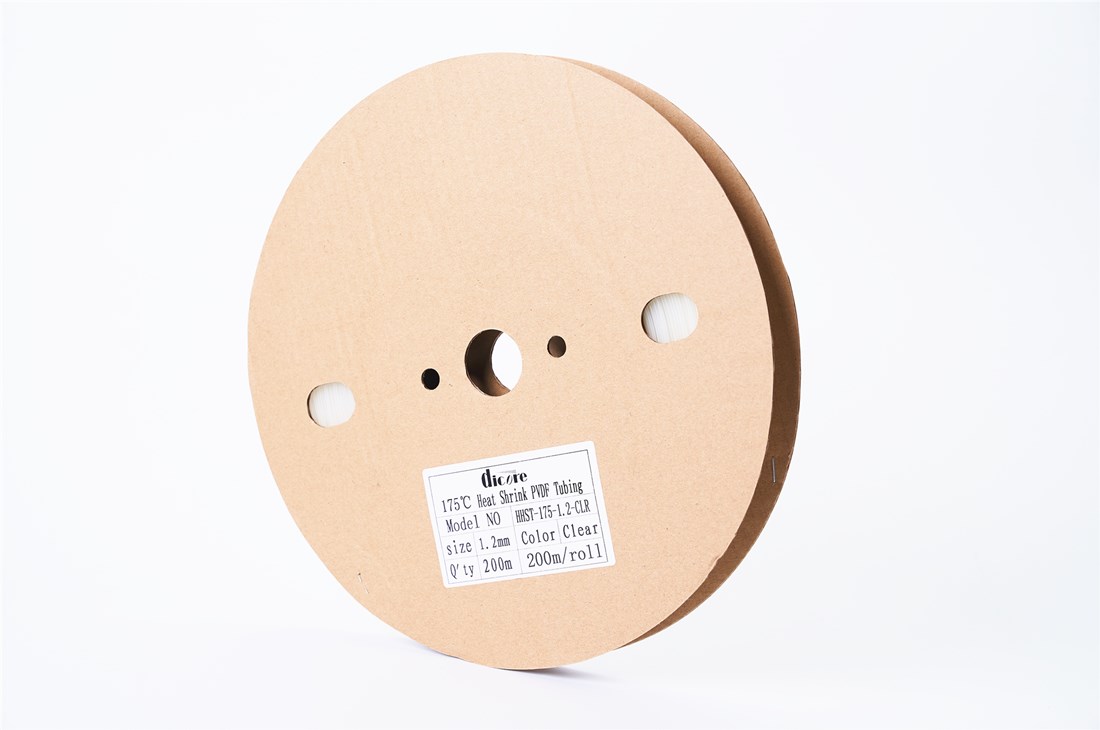

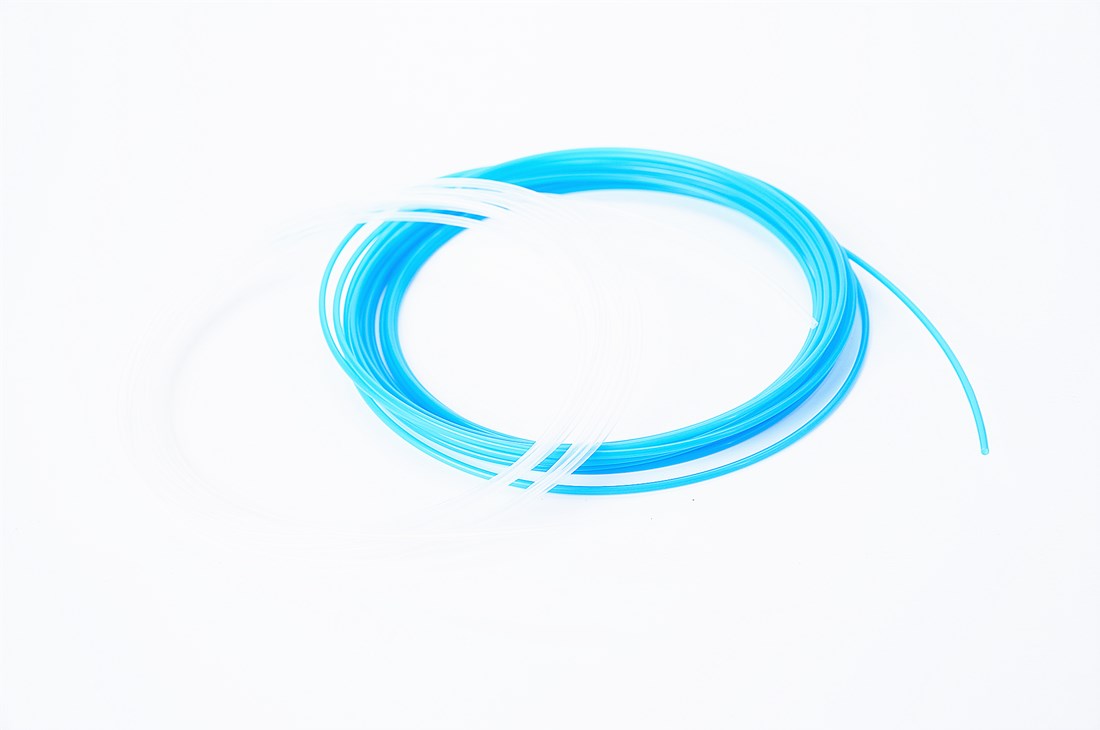

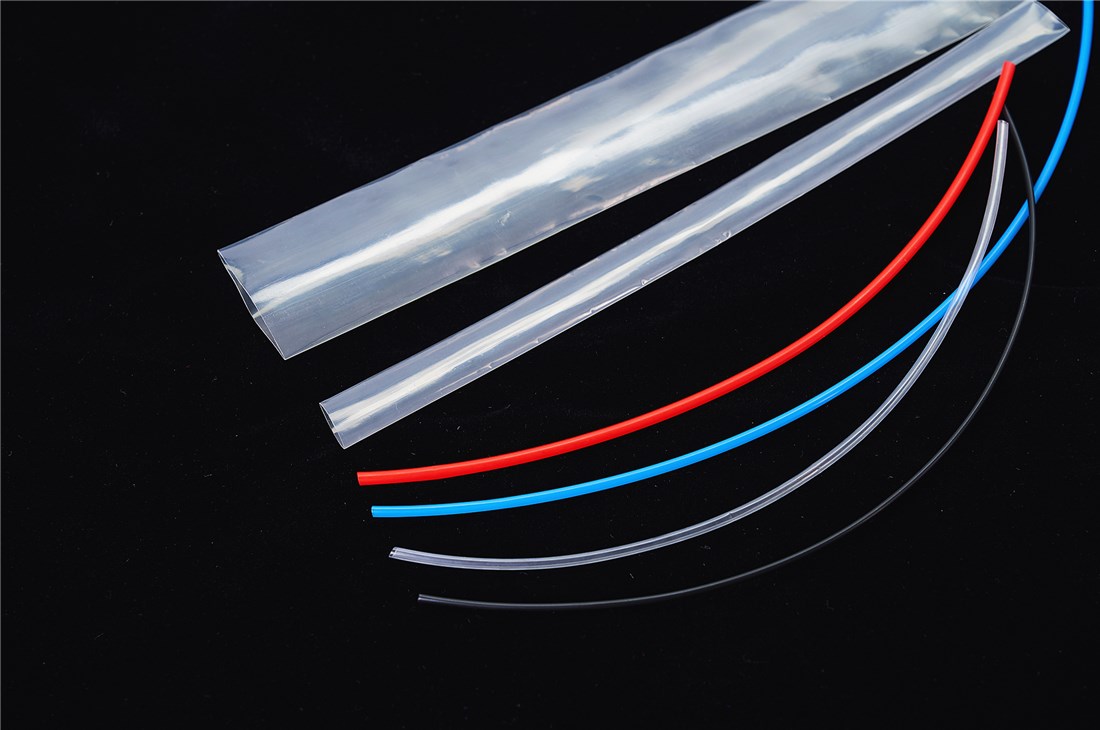

175℃ Heat Shrink PVDF Tubing (KYNAR) HHST-175 is semi-rigid, excellent flame retardant heat-shrinkable Polyvinylidene
fluoride (PVDF) tube for applications requiring high temperature performance, outstanding abrasion and cut through
resistance or superior chemical and solvent resistant properties. It reliably protects wires, solder joints, terminals and
connections and components from most industrial fuels, solvents and chemicals.
Features
>Approvals: UL, VW -1
>Meet: RoHS, SAE-AMS-DTL-23053/18
>Operating temperature: -55℃ to +175℃
>Minimum shrink temperature: 175℃
>Standard color: Clear
| Property | Test Method | Typical Data |
| Operating temperature | IEC 216 | -55℃ to +175℃ |
| Tensile strength | ASTM D 2671 | 34.5MPa |
| Elongation at break | ASTM D 2671 | 150% |
| Elongation at break after aging | 250℃/168hrs. | 100% |
| Heat shock | 300℃/1hr. | No cracking |
| Cold bend | -55℃/1hr. | No cracking |
| Flammability | VW -1 | Pass |
| Volume resistance | IEC 93 | 1013Ω.cm |
| Dielectric strength | ASTM D 2671 | 30kV/mm |
| Normal size | As supplied(mm) | After recovered (mm) | Tube shape | Standard length (m/roll) | ||
| (inch) | (mm) | Inside diameter(Min.) | Inside diameter (Max.) | Wall thickness(Nom.) | ||
3/ 64 | 1.2 | 1.2 | 0.6 | 0.25±0.05 | O | 200 |
1/16 | 1.6 | 1.6 | 0.8 | 0.25±0.05 | O | 200 |
3/ 32 | 2.4 | 2.4 | 1.2 | 0.25±0.05 | O | 200 |
1/ 8 | 3.2 | 3.2 | 1.6 | 0.25±0.05 | O | 100 |
3/16 | 4.8 | 4.8 | 2.4 | 0.25±0.05 | O | 100 |
1/ 4 | 6.4 | 6.4 | 3.2 | 0.30±0.05 | O | 100 |
3/ 8 | 9.5 | 9.5 | 4.8 | 0.30±0.05 | – | 50 |
1/ 2 | 12.7 | 12.7 | 6.4 | 0.30±0.05 | – | 50 |
3/ 4 | 19.1 | 19.1 | 9.5 | 0.42±0.05 | – | 50 |
1 | 25.4 | 25.4 | 12.7 | 0.50±0.05 | – | 50 |
1-1/2 | 38.1 | 38.1 | 19.1 | 0.50±0.05 | – | 50 |
Tube shape: “O” : Round or Oval, “—”: Flat
