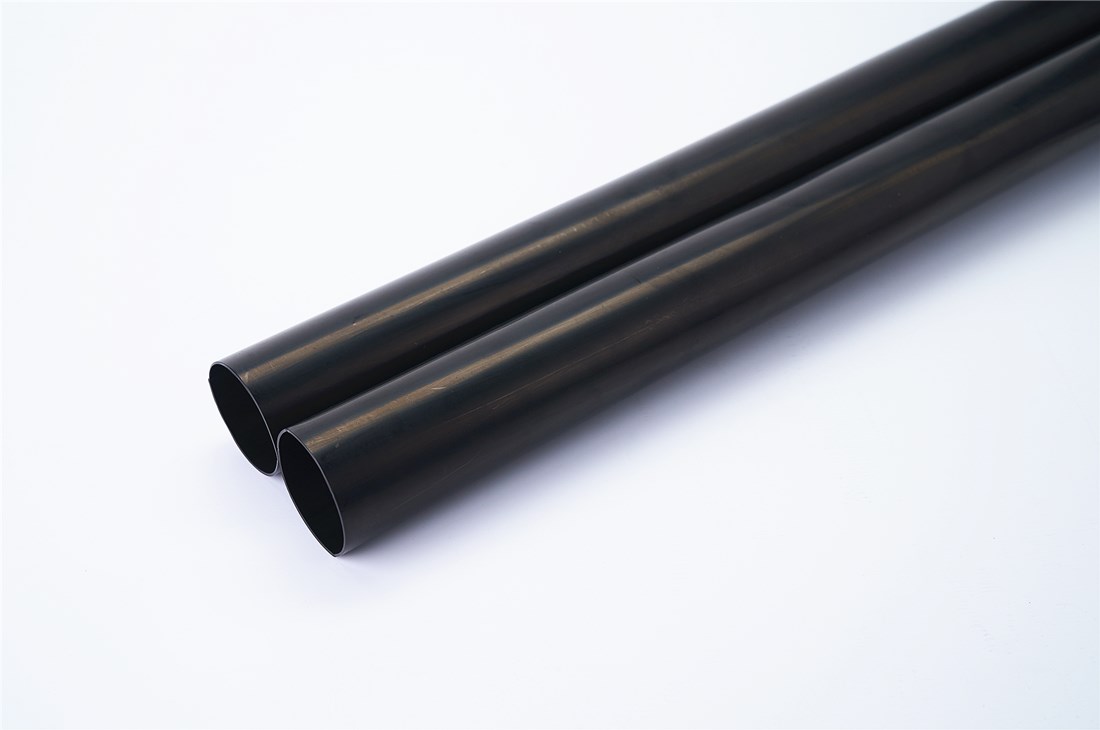

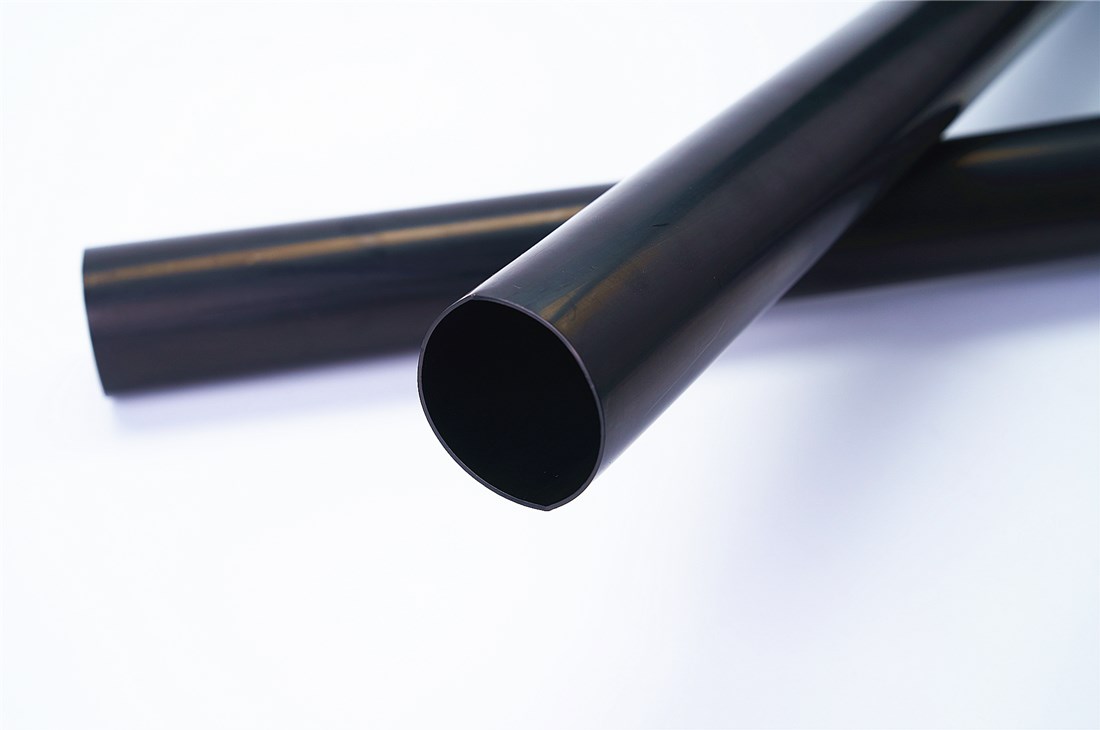

    Semi-Conductive Heat Shrink Tube

    Moodel:SCHST

    Semi-Conductive Heat Shrink Tube (SCHST) is used in Cable Joints upto 36 KV to provide insulation screen on the build-up insulation over connectors.

    Back to list >>

    Semi-Conductive Heat Shrink Tube (SCHST) is used in Cable Joints upto 36 KV to provide insulation screen on the build-up

    insulation over connectors. The Semi Conductive Tubing is made from thermally stabilize cross linked semi-conductive

    Polymeric material.



    >Material: Cross-linked polymer.

    >Operating temperature: -40℃~100℃.

    >Shrink temperature: start at 110℃ and shrink totally at 130℃.

    >Color: Black.


    Property

    Test Method

    Standard Value

    Operating temperature

    IEC 216

    -40℃to+100℃

    Tensile strength

    ASTM-D-638

    ≥14MPa

    Elongation at break

    ASTM-D-638

    ≥300%

    Tensile strength after aging

    ASTM-D-2671/120℃,168hrs

    ≥11MPa

    Elongation at break after aging

    ASTM-D-2671/120℃,168hrs

    ≥240%

    Volume resistance

    ASTM-D-2303

    ≥1×1021×103Ω·cm

    Longitudinal shrinkage

    ≤15%

    Eccentricity

    ASTM-D-267

    ≤30%

    Water absorption

    ISO 62

    ≤0.1%


    Part No.

    Inner Diameter(mm)

    Recovered Wall Thickness Nom . (mm)

    Standard Length (mm)

    As supplied (Min)

    After recovery (Max).

    SCHST-45/18

    45

    18

    2.4+/-0.1

    400-1200

    SCHST-50/20

    50

    20

    2.4+/-0.1

    400-1200

    SCHST-55/23

    55

    23

    2.4+/-0.1

    400-1200

    SCHST-65/26

    65

    26

    2.4+/-0.1

    400-1200

    SCHST-100/30

    100

    30

    2.9+/-0.1

    400-1200

    SCHST-120/35

    120

    35

    2.9+/-0.1

    400-1200
