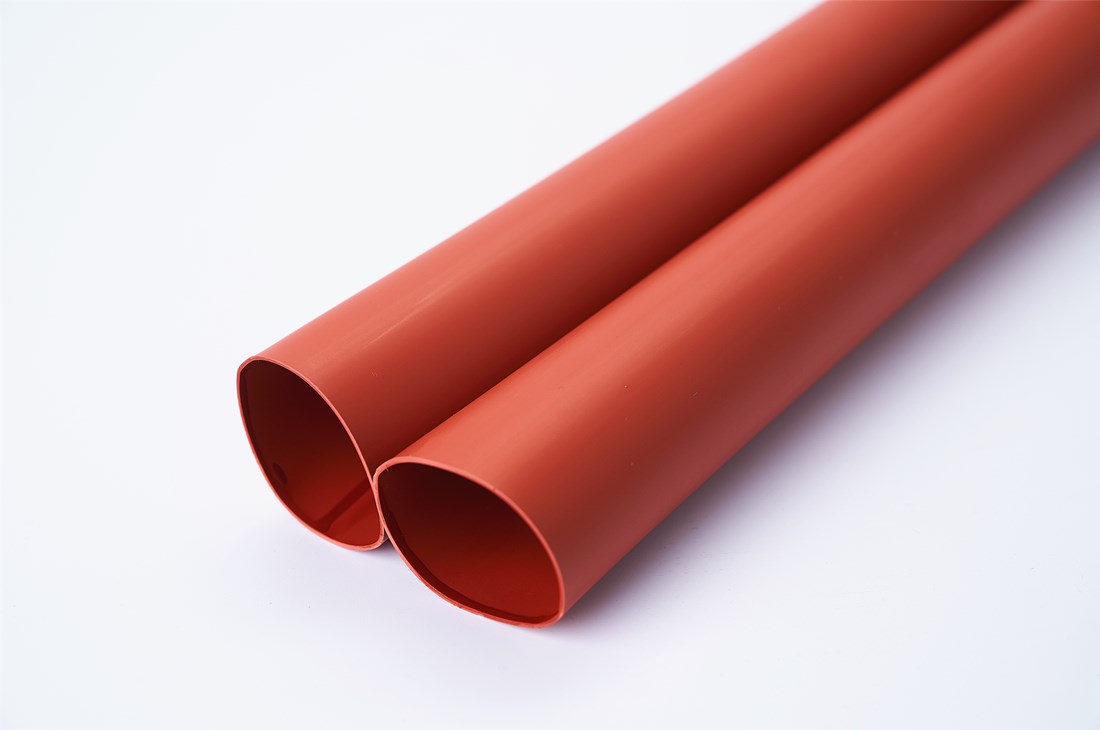

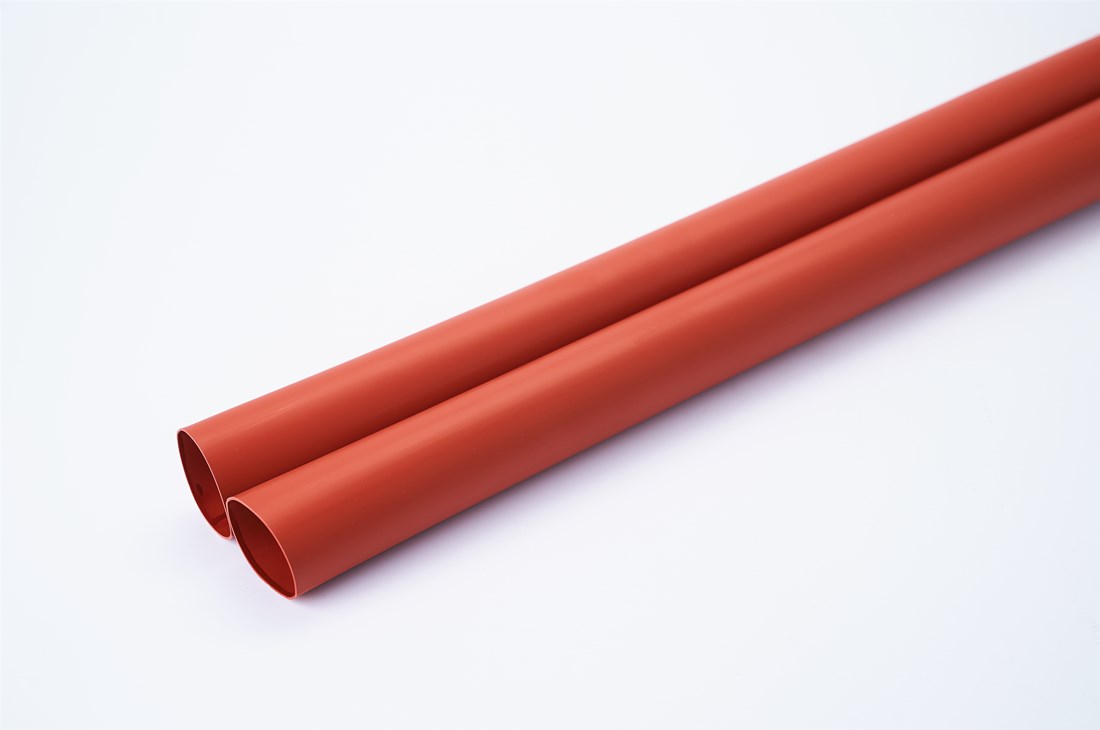

    Anti-Tracking Heat Shrinkable Tube

    Moodel:ATHST

    Anti-Tracking Heat Shrinkable Tube (ATHST) is designed for applications to seal and protect power cable joints from 11kV to 36kV. It is used in medium voltage cable Joints and terminations upto 36kv.

    Back to list >>

    Anti-Tracking Heat Shrinkable Tube (ATHST) is made from radiation cross-linked polyolefin, Designed for applications to seal and protect power cable joints from 11kV to 36kV. It is used in medium voltage cable Joints and terminations upto 36kv. The tubes are produced from high quality non tracking cross linked polyolefin material that offers exceptional insulation and long term service reliability.

    Features


    >Material: polyolefin, inner coated with adhesive at the end..

    >Operating temperature: -55℃~100℃.

    >Shrink temperature: start at 100℃ and shrink totally at 130℃.

    >Standard Color: Red.


    Property

    Test Method

    Standard Value

    Operating temperature

    IEC 216

    -45℃ to +105℃

    Tensile strength

    ASTM-D 2671

    ≥13MPa

    Elongation at break

    ASTM-D 2671

    ≥300%

    Tensile strength after aging

    ASTM-D-2671/120℃,168hrs

    ≥11MPa

    Elongation at break after aging

    ASTM-D-671/120℃,168hrs

    ≥240%

    Dielectric strength

    IEC 243

    ≥20kV/mm

    Tracking resistant

    ASTM-D-2303

    3.75Kv, 1hr, pass

    Volume resistance

    ASTM-D-2303

    ≥1×1014Ω·cm

    Dielectric constant

    IEC 250

    3.0

    Longitudinal shrinkage

    ≤10%

    Eccentricity

    ASTM-D-2671

    ≤30%

    Water absorption

    ISO 62

    ≤0.1%

    Flammability (Oxygen index)

    IEC 93

    ≥28

    Copper corrosion

    ASTM-D-2671

    120℃,168hr, no corrosion

    Cold bend

    ASTM-D-2671

    -40℃, 4hrs, no cracking


    Model

    SUPPLIED(mm)

    RECOVERED(mm)

    Standard Package

    Inner Diameter (MAX)

    Inner Diameter (MAX)

    Wall Thickness
    mm

    mm/pc

    ATHST-30/12

    30

    12

    2.1+/-0.2

    600-1200

    ATHST-35/14

    35

    14

    2.2+/-0.2

    600-1200

    ATHST-40/17

    40

    17

    2.2+/-0.2

    600-1200

    ATHST-50/22

    50

    22

    2.4+/-0.2

    600-1200

    ATHST-55/24

    55

    24

    3.2+/-0.2

    600-1200

    ATHST-60/26

    60

    26

    3.2+/-0.2

    600-1200

    ATHST-70/29

    70

    29

    3.2+/-0.2

    600-1200

    ATHST-75/35

    75

    35

    3.2+/-0.2

    600-1200
