    Solder Sleeve Wire Splice

    Moodel:SSWS

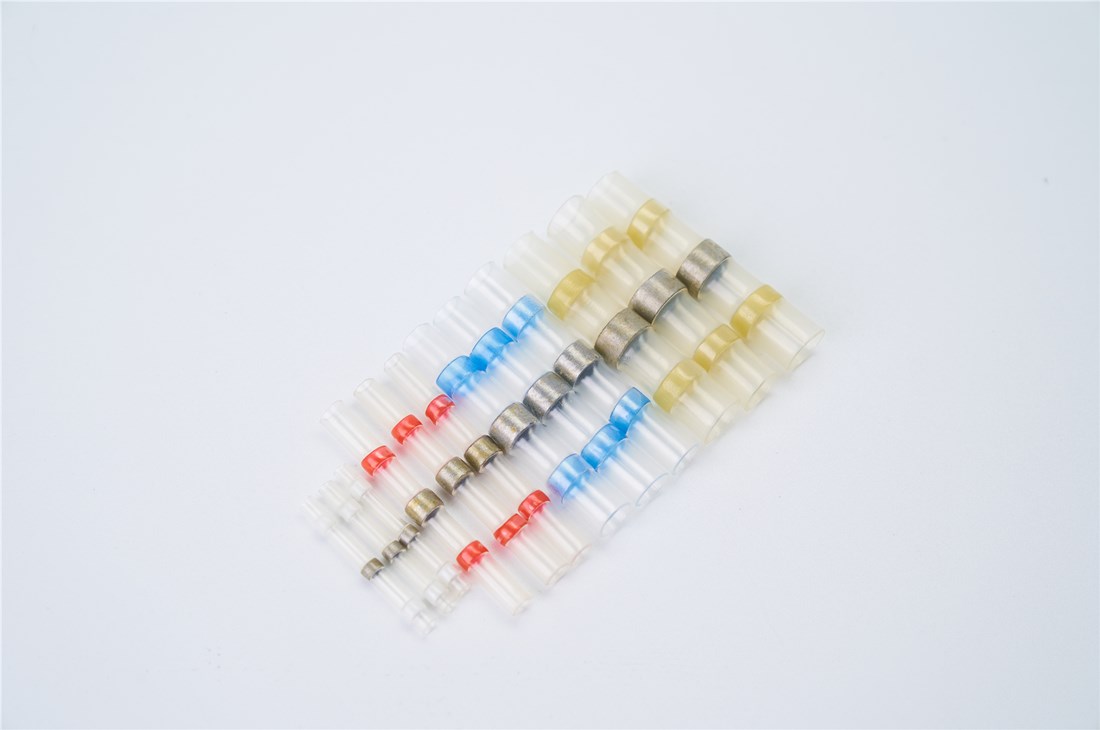

    Solder Sleeve Wire Splice is one piece design, it consists of transparent heat shrinkable sleeve and fluxed solder Provides insulation, inspection, strain relief and water proof.

    Back to list >>


    It is also named wire connector

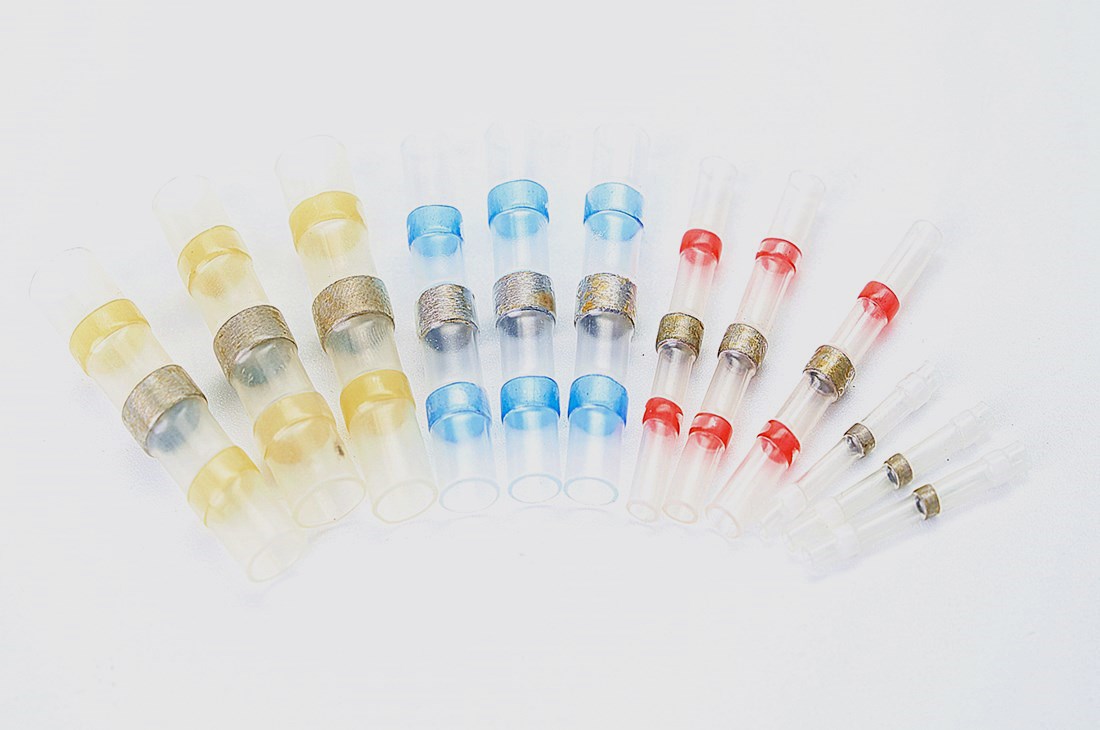

    Solder Sleeve Wire Splice is one piece design, it consists of transparent heat shrinkable sleeve and fluxed solder Provides insulation, inspection, strain relief and water proof.  Makes installation easily and lower the installed cost.  Color hot-melt glue on two ends of heat shrinkable tube, it’s very convenience to use the exact wire dimension.


    Application: In-line Wire splices


    Operating Termperature Range:


    >Operating temperature : -55˚C~125˚C

    >Fully recovery temperature : 130˚C

    >Temperature of fully solder melt : 150˚C


    ItemValue
    Temperature Application Range-55˚C~125˚C (Butt Joint)-40˚C~125˚C(End Connector)
    Shrinking Temperature>150℃
    Dielectric strength2KV
    Protection TypeIP 67


    ModelColor

    Before Shrinking(mm)

    After Shrinking(mm)

    Solder Ring

    Length (L)

    ID (a)

    Thickness(b)

    ID

    Thickness

    ID (c)

    Thickness(d)

    Length (e)

    SSWS-1

    White

    2.0±0.1

    0.30±0.05

    1.1±0.1

    0.50±0.05

    1.8±0.1

    0.3±0.05

    1.6±0.1

    25±0.5

    SSWS -2

    Red

    3.2±0.2

    0.38±0.05

    1.5±0.1

    0.55±0.05

    2.9±0.1

    0.45±0.05

    3.0±0.1

    40±0.5

    SSWS -3

    Blue

    5.0±0.2

    0.40±0.05

    2.6±0.1

    0.78±0.05

    4.6±0.1

    0.48±0.05

    4.2±0.1

    40±0.5

    SSWS -4

    Yellow

    6.5±0.2

    0.40±0.05

    3.0±0.1

    0.80±0.05

    6.2±0.1

    0.5±0.05

    4.3±0.1

    40±0.5
