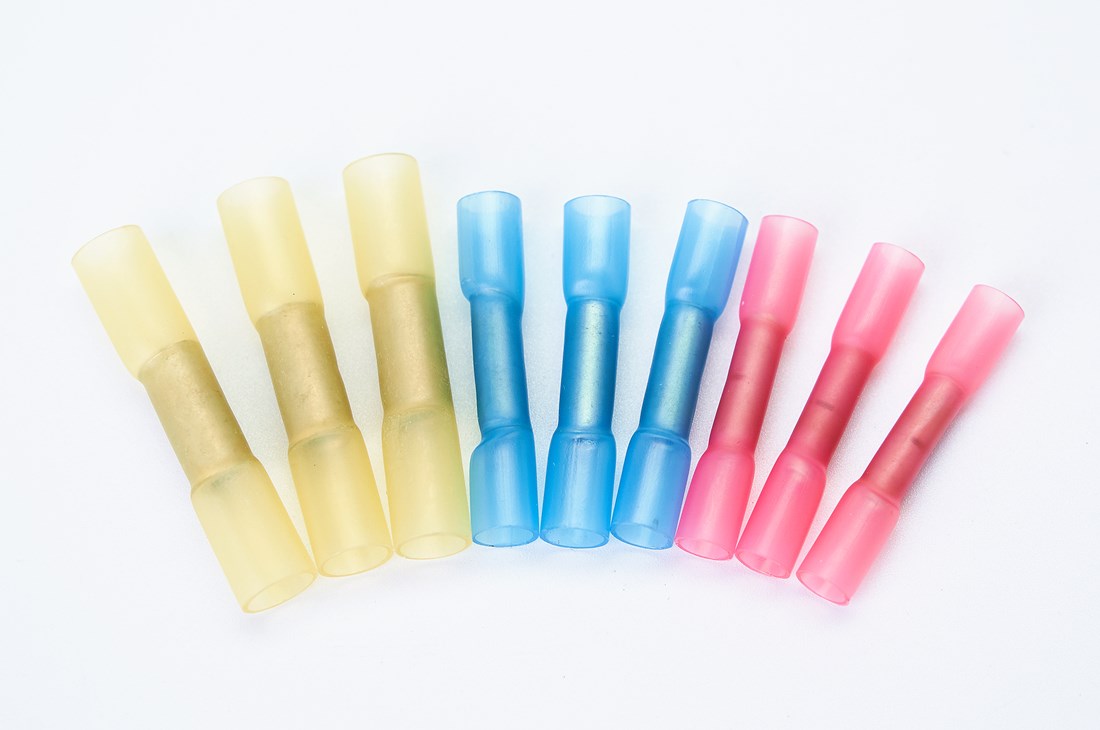

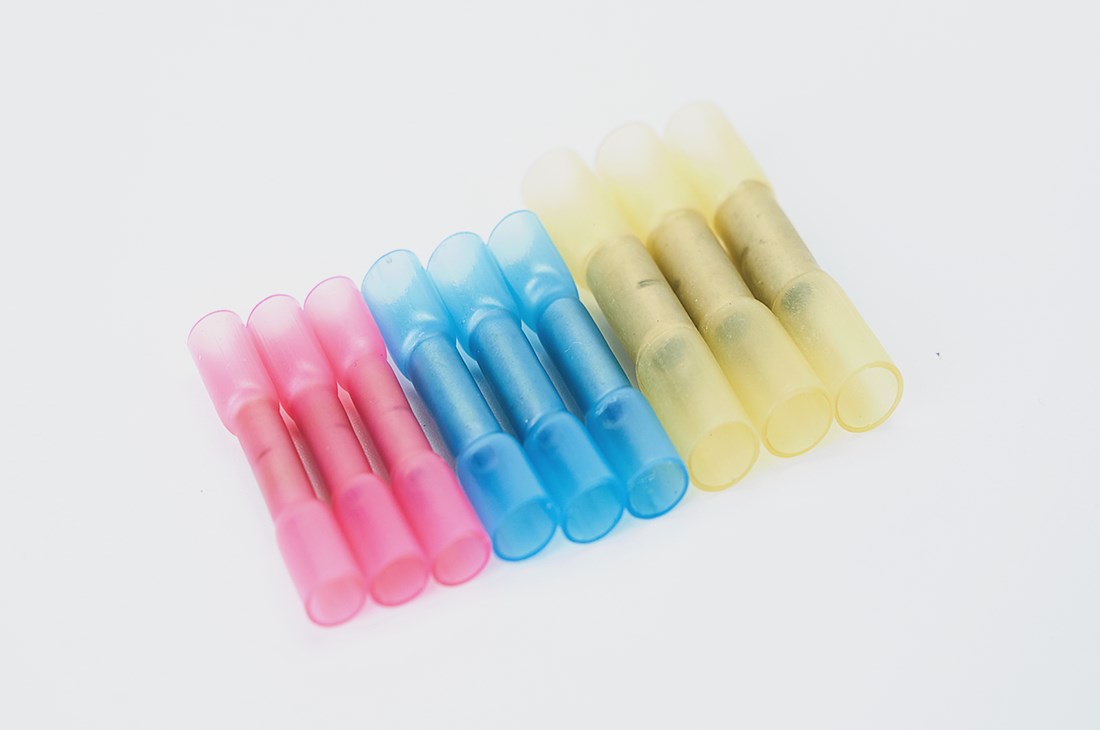

    Dura Seal Heat Shrinkable Butt Splice

    Moodel:DHSCS

    DuraSeal Heat Shrinkable butt Splice (DHSCS) is made of polyolefin, with adhesive lining for protecting splices from water, condensation, salt, and corrosion.

    Back to list >>

    DuraSeal Heat Shrinkable butt Splice (DHSCS) , it is also named heat shrinkable wire splice or heat shrinkable wire terminal

    is made of polyolefin, with adhesive lining for protecting splices from water, condensation, salt, and corrosion. Providing

    strain relief and against vibration in rugged environments, which completely insulates and protects electrical connections.

    It offer long-term performance, easy installation, and a low installed cost, which is more reliable than conventional splices.


    Features


    >Automotive/truck wiring repair and fleet maintenance

    >Automotive/truck/RV wire harness fabrication

    >Commercial wiring for pumps, pools and spas

    >Fleet maintenance & Marine electronics


    Test ltem

    Characterisrics

    Test condition

    Un-aged

    Tensile strength

    Min. 1.40 kgf/

    Room temp.

    Elongation

    Min. 200%

    Aged

    Tensile strength

    Min. 0.99 kgf/

    158℃/7 days

    Elongation

    Min. 100%

    Voltage withstand and breakdown Voltage(Un-aged)

    Withstand 2.5 KV for 1minute and breakdown

    Room temp.

    Voltage withstand and breakdown Voltage(Aged)

    Withstand 2.5 KV for 1minute and breakdown at least half of un-aged breakdown voltage

    158℃/7 days

    Copper corrosion

    No corrosion of bare copper

    158℃/7 days

    Copper stability

    No sign of degradation Min.Elongation 100%

    158℃/7 days

    Cold bend

    No crack

    -30℃/1 hrs

    Maximum secant modulus(2%)

    17.65 kgf/

    Volume resistivity

    Min.1014Ω-cm

    Heat shock

    No crack

    250℃/4 hrs


    Part. NoWire RangeDimension-(mm)InsulatorcolorpackageApproval
    A.W.G. mm2ODIDLPcs/bag
    DHSCS -122-180.5-1.04.81.735.0PERed1000RoHS
    DHSCS -216-141.5-2.55.82.435.0PEBlue1000RoHS
    DHSCS -312-104.0-6.06.83.642.0PEYellow800RoHS
