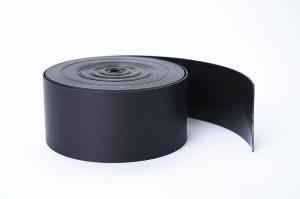

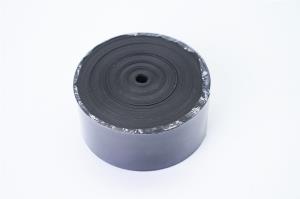

Heat shrinkable Insulating tape is specially designed to repair the buried / over the cable or pipe It is mainly used for insulating, anti-corrosive and mending purposes at the bending part.
Back to list >>
Application: Heat shrinkable Insulating tape is specially designed to repair the buried / over
the cable or pipe It is mainly used for insulating, anti-corrosive and mending purposes at the
bending part. It may also be wound around the whole cable or pipe for insulating and
anti-corrosive purpose. It uses crosslinked polyolefin as the base material with a special heat
seal coating. Sound bonding is formed on the pipe or cable surface when applied together with
solid epoxy coating.
1. Partial Repair of the cable protective layers suffered by mechanical and heat damage and
erosions and breakages caused by organic solvents;
2. Waterproof treatment at the ends of protective sleevings of heat shrinkable power cable
joints;
3. Protection of electriferous naked conductors and treatment of shortcut circuit caused by
icicles;

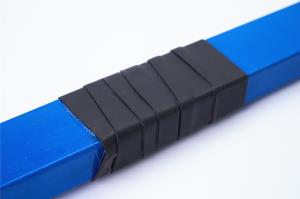

4. Anti-corrosion and seal of pipes;
5. Insulation of bus bars in switch gear cupboards and power stations;
6. Other areas where insulations and seals are needed.

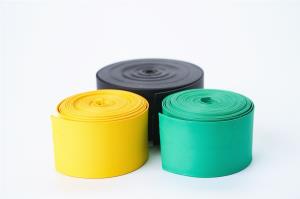

Color: Red, Yellow, Green and Black
Characteristics:
1. Self shrink rate> 30%;
2. Operating temperature: -55℃~105℃;
3. Shrink Temperature: 125℃.
Property:
property | Test Method | Standard Value |
Tensile strength | ASTM D638 | ≥10.4MPa |
Elongation | ASTM D638 | ≥200% |
Tensile after aging | ASTMD 2671/120℃, 168h | ≥10MPa |
Elongation after aging | ASTMD 2671/120℃, 168h | ≥200% |
Dielectric Strength | IEC 243 | ≥10kV/mm |
Volume Resistivity | IEC 250 | ≥1014Ω. cm |
Size | Standard Width(mm) | Standard Thickness(mm) | Standard Length(m) |
HSIT-0825 | 25 | 0. 8±0. 1 | 5 or 10 |
HSIT-0850 | 50 | 0. 8±0. 1 | 5 or 10 |
HSIT-08100 | 100 | 0. 8±0. 1 | 5 or 10 |
HSIT-1025 | 25 | 1. 0±0. 1 | 5 or 10 |
HSIT-1050 | 50 | 1. 0±0. 1 | 5 or 10 |
HSIT-10100 | 100 | 1. 0±0. 1 | 5 or 10 |
Other sizes are available upon request.
