    Medium wall heat shrink tubing — Pipeline protection

    Website:www.dicoretubing.com   Date:2019-12-10

    Today , let’s talk about medium wall heat shrink tubing .

    First , why we named it medium wall ? It is according to the thickness of the wall of heat shrink tubing . Normally , there are 3 kinds , thin wall , medium wall and heavy wall .

    The thickness of medium wall is from 0.8mm to 1.5mm , the diameter more bigger , the wall will be more thicker .

    There are also 2 kinds , one kind with hot melt adhesive inside , another without .

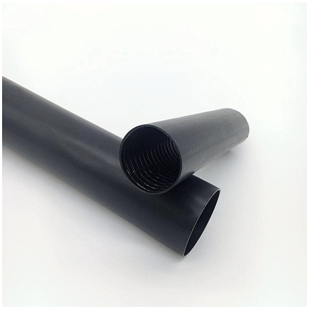

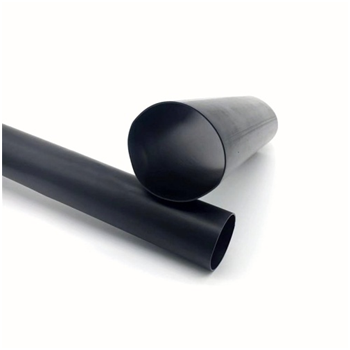

    The sizes below 28mm , we just produce them with straight adhesive inside , above 28mm , one more choice , screw adhesive inside . You can see the difference in the pictures below .

    No adhesive



    Straight adhesive




    Screw adhesive


    You can choose the best one according to your requirement .

    Medium wall heat shrink tubing widely used for cable and pipeline protection .

    The shrink ratio is 4:1 , for example , diameter 8mm , after shrink , the diameter will be 2mm , so you can cover it on the cables diameter from 2.5mm to 7.5mm .

    The standard lengths we produce : 150mm/pc ; 250mm/pc ; 500mm/pc ; 1000mm/pc ; 1220mm/pc . We also accept other size orders , but MOQ will be larger .

    Specification of medium wall heat shrink tubing as below .

    Please choose the right size you need after you checked the data ,before you order it from us , it will save much time for each other . Thanks !
