PVDF heat shrink tubing is one kind of hign temperature resistance heat shrink tubing , the operating temperature can be 175℃ . So it wildly used for protecting wire in high temperature envirment . The data of PVDF heat shrink tubing as below .
| Property | Test Method | Typical Data |
| Operating temperature | IEC 216 | -55℃ to +175℃ |
| Tensile strength | ASTM D 2671 | 34.5MPa |
| Elongation at break | ASTM D 2671 | 150% |
| Elongation at break after aging | 250℃/168hrs. | 100% |
| Heat shock | 300℃/1hr. | No cracking |
| Cold bend | -55℃/1hr. | No cracking |
| Flammability | VW -1 | Pass |
| Volume resistance | IEC 93 | 1013Ω.cm |
| Dielectric strength | ASTM D 2671 | 30kV/mm |
| Normal size | As supplied(mm) | After recovered (mm) | Tube shape | Standard length (m/roll) | ||
| (inch) | (mm) | Inside diameter(Min.) | Inside diameter (Max.) | Wall thickness(Nom.) | ||
3/ 64 | 1.2 | 1.2 | 0.6 | 0.25±0.05 | O | 200 |
1/16 | 1.6 | 1.6 | 0.8 | 0.25±0.05 | O | 200 |
3/ 32 | 2.4 | 2.4 | 1.2 | 0.25±0.05 | O | 200 |
1/ 8 | 3.2 | 3.2 | 1.6 | 0.25±0.05 | O | 100 |
3/16 | 4.8 | 4.8 | 2.4 | 0.25±0.05 | O | 100 |
1/ 4 | 6.4 | 6.4 | 3.2 | 0.30±0.05 | O | 100 |
3/ 8 | 9.5 | 9.5 | 4.8 | 0.30±0.05 | – | 50 |
1/ 2 | 12.7 | 12.7 | 6.4 | 0.30±0.05 | – | 50 |
3/ 4 | 19.1 | 19.1 | 9.5 | 0.42±0.05 | – | 50 |
1 | 25.4 | 25.4 | 12.7 | 0.50±0.05 | – | 50 |
1-1/2 | 38.1 | 38.1 | 19.1 | 0.50±0.05 | – | 50 |
Today I want to tale about another important performance of PVDF heat shrink tubiing , Crocking resistance .

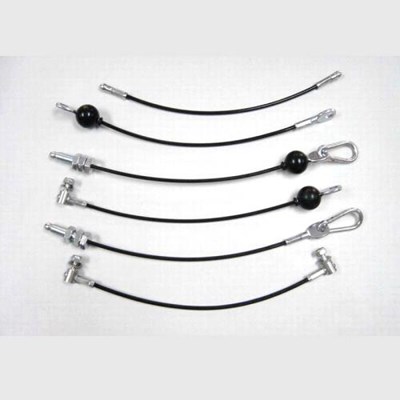

It can be used for protecting kinds of brake wire , such as : Throttle cable on a motorcycle , brake wire protection , protect the steel wire inside the office chair lift adjuster .
If you need it , contact us please , we will provide you best qualtity goods and price .
